PRODUCT DETAILS

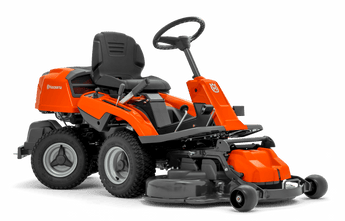

Versatile and powerful Rider
Product Specification
R214C RIDER Art no: 970 51 94‑01 | |
|---|---|
| Engine | R214C RIDER Art no: 970 51 94‑01 |
| Power/fuel type | Petrol |
Net power at preset rpm Energy1 | 8.4 kW |
| Net power at preset rpm | 3,000 rpm |
| Motor/engine manufacturer | Husqvarna |
| Engine name | HS 413AE |
| Cylinder displacement | 413 cm³ |
| Cylinders | 1 |
| Engine cooling | Air |
| Engine lubrication type | Pressure |
| Oil filter | Yes |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 773 g/kWh |
| Battery | |
| Battery capacity | 24 Ah |
| Battery type | Lead-Acid |
| Battery pack weight | 7.2 kg |
| Battery manufacturer | Global |
| Cutting deck | |
| Uncut circle | 30 cm |
| Cutting width, min | 94 cm |
| Cutting width, max | 94 cm |
| Cutting height min | 25 mm |
| Cutting height max | 75 mm |
| Blade engagement | Automatic |
| Dimensions | |
| Tyre dimensions, front | 170/60-8 |
| Tyre dimensions, rear | 170/60-8 |
| Wheelbase | 88.7 cm |
| Ground clearance | 120 mm |
| Base machine, length | 192.2 cm |
| Base machine, width | 88.3 cm |
| Base machine, height | 107 cm |
Gross weight towed3 | 110 kg |
| Weight (excl. cutting equipment) | 191 kg |
| Drive system | |
| Transmission type | Hydrostatic |
| Drive method | Dual pedal-operation |
| Speed forward max | 9 km/h |
| Speed reverse max | 5.6 mph |
| Speed reverse max | 9 km/h |
| Equipment | |
| Seat suspension | Yes |
| Hour meter type | Digital |
| Seat material | PU |
| Seat back height | Medium |
| Foldable seat | Yes |
| Steering wheel type | Comfort |
| Parking brake, type | Disc |
| Vibration | |
| Vibration level steering wheel | 2.1 m/s² |
| Vibration level seat | 0.6 m/s² |
| Sound and noise | |
| Sound pressure level at operators ear | 84 dB(A) |
| Sound power level, guaranteed (LWA) | 99 dB(A) |
| Sound power level, measured | 98 dB(A) |
Features
Combi cutting deck with BioClip® (mulching) BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser. Turn key start Easy to get operating under any weather condition and no choking needed. Just turn the key and go. Service position The cutting deck can be tilted up into service position for easy access during cleaning or service. Automatic blade engagement The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work. Pedal-operated hydrostatic transmission Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control. Pivoting rear axle The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces. Adjustable steering wheel Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort. Storage compartment The open left storage makes it easy to access your items while mowing. Easy-access cutting height lever The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing. Hour meter Hour meter for easy control of operating time and service and maintenance intervals. Bottle holder Convenient bottle holder for refreshments. Unique articulated steering The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock. Combi cutting deck The Combi cutting deck allows you to choose between two cutting systems depending on the conditions. Choose BioClip® for lawn fertilisation and rear ejection for efficient mowing on areas with higher and rougher grass. Easy-access controls Controls are easy accessible and designed for optimum user comfort. Engine behind driver The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines. Four large wheels 16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces. Front-mounted cutting deck Front-mounted cutting deck for excellent accessability into corners and under bushes, park benches etc. Versatile usage A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.
