PRODUCT DETAILS
Powerful and versatile brushcutter for frequent trimming
Product Specification
|
T35 M12 + Multi 275-4 1", 543RS Brushcutter Art no: 966 77 99‑01 |
|
|---|---|
| Engine |

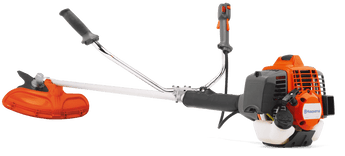

T35 M12 + Multi 275-4 1", 543RS Brushcutter
Art no: 966 77 99‑01
|
| Cylinder displacement | 40.1 cm³ |
|
Output shaft power1
|
1.39 kW |
| Fuel tank volume | 0.75 l |
| Fuel consumption | 424 g/kWh |
| Maximum power speed | 9,000 rpm |
| Idling speed | 3,000 rpm |
| Torque, max. | 1.96 Nm |
| Torque, max. at rpm | 6,000 rpm |
| Spark Plug | NGK CMR7H |
| Equipment | |
| Grass blade | Multi 275-4 |
| Harness | Standard double harness |
| Saw blade | Not included |
| Trimmer head | T35 M12 |
| Capacity | |
| Cutting width | 46 cm |
| Transmission | |
| Gear ratio | 1.4 |
| Drive gear angle | 30 ° |
| Dimensions | |
| Tube diameter | 28.05 mm |
| Weight (excl. cutting equipment) | 7.4 kg |
| Tube length | 1,483 mm |
| Lubricant | |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Sound and noise | |
| Sound pressure level at operators ear | 95 dB(A) |
| Sound power level, guaranteed (LWA) | 118 dB(A) |
| Emission | |
| Exhaust emissions (HC average) EU | 41 g/kWh |
| Exhaust emissions (CO average) EU | 290.1 g/kWh |
| Exhaust emissions (NOx average) EU | 0.7 g/kWh |
|
Exhaust emissions (CO₂ EU V)2
|
1,014 g/kWh |
| Vibration | |
| Equivalent vibration level (ahv, eq) left handle | 3.5 m/s² |
| Equivalent vibration level (ahv, eq) right handle | 3 m/s² |
Features
X-Torq® engine The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power. Standard double harness Standard double harness for lighter brushcutters provides a comfortable working position. The weight is distributed evenly over the shoulders and the harness is padded for extra convenience. Quick Start with Air Purge Air purge removes air from carburetor and fuel system for easy starting High Line Capacity Heavy duty twin line cutting system with Tap'n Go. Line feeding is done quick and effortlessly by simply pushing the trimmer head into the ground. Combi-guard The cutting attachment combi-guard can be used with either a grass blade or a trimmer head. evel gear design Proven and reliable gear design. Robust handle system The handle bar is attached to the tube by a die casted clamp for high durability. Heavy duty clutch The heavy duty clutch facilitates tough work using long cords and large diameter cutting knife. Stand alone starter The stand alone starter makes it easy to change starter cord if needed. Efficient air filter The efficient air filter provide less cost for service and less engine wear Grass bevel gear Bevel gear designed for optimal cutting performance. It provides high torque and ensures the correct angle so that the cutting equipment is kept parallel to the ground. Ergonomic handle Comfortable handle design.
