Husqvarna R 214

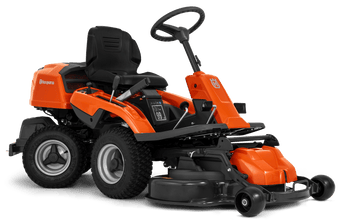

Husqvarna Rider R 214 is ideal for taking care of larger lawns and this versatile ride-on lawn mower is efficient all year round. It can be fitted with a 94 cm or 103 cm combi cutting deck with two cutting options – BioClip® (mulching) for lawn fertilization and rear ejection cutting for higher tougher grass. The rider is easy to operate clean and maintain thanks to the cutting deck’s service position. A wide range of Husqvarna accessories is available.
Pickup available at Greenstripe Innovations
Usually ready in 2-4 days
PRODUCT DETAILS
Versatile Rider with 94 or 103 cm cutting deck
Product Specification
R 214 RIDER Art no: 970 54 21‑01 | |
|---|---|
| Engine | R 214 RIDER Art no: 970 54 21‑01 |
| Power/fuel type | Petrol |
Net power at preset rpm Energy1 | 9.5 kW |
| Net power at preset rpm | 3,000 rpm |
| Motor/engine manufacturer | Husqvarna |
| Engine name | HS 452AE |
| Cylinder displacement | 452 cm³ |
| Cylinders | 1 |
| Engine cooling | Air |
| Engine lubrication type | Pressure with Oilfilter |
| Oil filter | Yes |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 773 g/kWh |
| Battery | |
| Battery capacity | 24 Ah |
| Battery type | Lead-Acid |
| Battery pack weight | 7.2 kg |
| Battery manufacturer | Global |
| Cutting deck | |
| Uncut circle | 30 cm |
| Cutting width, min | 94 cm |
| Cutting width, max | 103 cm |
| Cutting height min | 25 mm |
| Cutting height max | 75 mm |
| Blade engagement | Automatic |
| Dimensions | |
| Tyre dimensions, front | 170/60-8 |
| Tyre dimensions, rear | 170/60-8 |
| Wheelbase | 89 cm |
| Ground clearance | 120 mm |
| Base machine, length | 194.2 cm |
| Base machine, width | 88.3 cm |
| Base machine, height | 113 cm |
Gross weight towed3 | 110 kg |
| Weight (excl. cutting equipment) | 192 kg |
| Drive system | |
| PTO (Power Take Off) | Belt Drive |
| Transmission type | Hydrostatic |
| Drive method | Dual pedal-operation |
| Speed forward max | 9 km/h |
| Speed reverse max | 3.7 mph |
| Speed reverse max | 6 km/h |
| Equipment | |
| Seat suspension | Yes |
| Seat type | Comfort |
| Hour meter type | Digital |
| Seat material | PU |
| Seat back height | Medium |
| Foldable seat | Yes |
| Steering wheel type | Comfort |
| Parking brake, type | Disc |
| Vibration | |
| Vibration level steering wheel | 2.1 m/s² |
| Vibration level seat | 0.61 m/s² |
| Sound and noise | |
| Sound pressure level at operators ear | 86.4 dB(A) |
| Sound power level, guaranteed (LWA) | 100 dB(A) |
| Sound power level, measured | 99.2 dB(A) |
Features
Pivoting rear axle The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces. Adjustable steering wheel Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort. Hour meter Hour meter for easy control of operating time and service and maintenance intervals. Unique articulated steering The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock. Four large wheels 16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces. Combi cutting deck with BioClip® (mulching) BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser. Automatic blade engagement The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work. Turn key start Easy to get operating under any weather condition and no choking needed. Just turn the key and go. Versatile usage A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round. Easy-access controls Controls are easy accessible for effective and ergonomic handling. Pedal-operated hydrostatic transmission Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control. Easy-access cutting height lever The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing. Service position The cutting deck can be tilted up into service position for easy access during cleaning or service.
