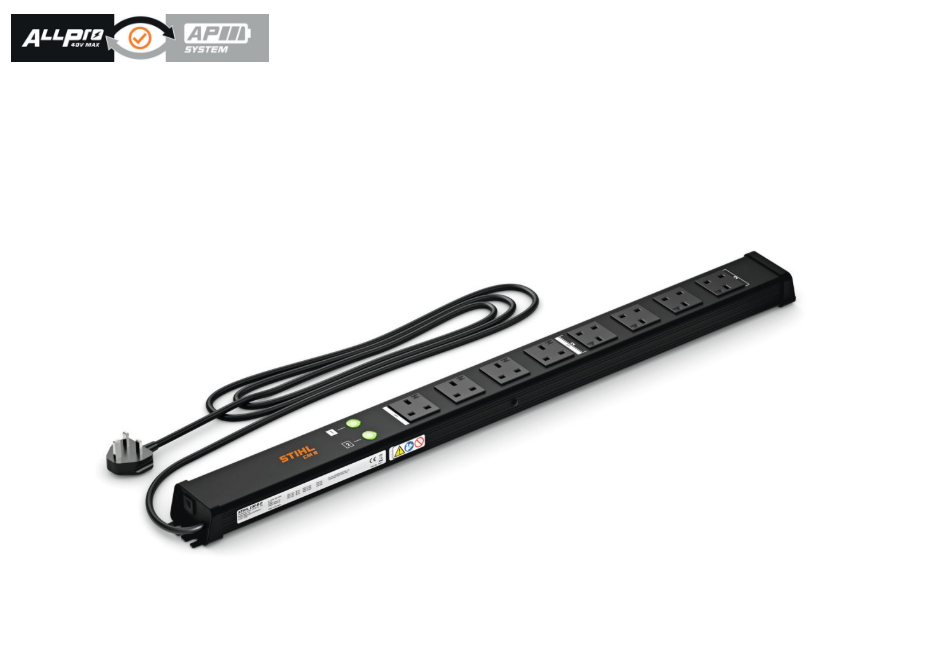

Stihl CM 8 Charging Management Solution
CM 8 Charging Management: charge twice as many chargers from a single socket
The STIHL CM 8 Charging Management is a compact, intelligent solution designed to streamline battery charging for professional users. Supporting up to eight chargers and 32 batteries, it’s ideal for high-demand environments where fast charging matters.
The CM 8 has a 2 stage charging system. This allows you to charge twice as many chargers from a single socket. CM 8 is split into two banks of 4 chargers. It charges the first bank, then auto switches to the chargers on the second bank.
A total of 8 chargers can be connected to the CM 8, meaning a maximum of 32 batteries can be charged at once (through use of the AL 301-4). Suitable for wall mounting, the CM 8 can be combined with the CR 6 wall mount charging rack for improved space management in your workshop.
A maximum of 1840 Watts (W) can be used on each bank. Example calculations of what mix of chargers are below the 1840 W limit on each bank:
| Qty | Charger | Watts | Qty | Charger | Watts | Total |
|---|---|---|---|---|---|---|
| 3 | AL 501 | 570 W | - | - | - | 1710 W |
| 3 | AL 501 | 570 W | 1 | AL 101 | 75 W | 1785 W |
| 4 | AL 301-4 | 300 W | - | - | - | 1200 W |
| 2 | AL 501 | 570 W | 2 | AL 301 | 300 W | 1740 W |
| 2 | AL 501 | 570 W | 2 | AL 301-4 | 300 W | 1740 W |
IMPORTANT: Do not use a combination of 4 x AL 501 chargers on each bank as this exceeds the maximum Watts (W) allowed.
Can be used with non-STIHL chargers.
Dimensions: H 866 x W 74 x D 48 (mm)
